PVC Yapıştırma Fittingsleri
PVC Yapıştırma Fittingsleri PDF Dosyaları
-

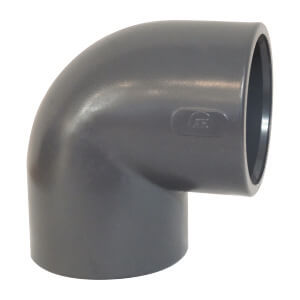

Yapıştırma Dirsek 90°
5071-7071
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
5071/0020 20 780 E 5071/0025 25 400 A 5071/0032 32 200 A 5071/0040 40 120 A 5071/0050 50 85 E 5071/0063 63 50 E 5071/0075 75 30 E 5071/0090 90 20 E 5071/0110 110 15 H 5071/0125 125 12 H 7071/0140 140 6 H 5071/0160 160 3 E 7071/0200 200 2 H 7071/0225 225 1 H 7071/0250 250 1 7071/0280 280 1 7071/0315 315 1 -

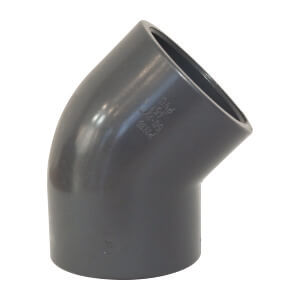

Yapıştırma Dirsek 45°
5072-7072
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
7072/0020 20 600 A 7072/0025 25 400 A 7072/0032 32 200 A 7072/0040 40 130 A 5052/0050 50 100 Α 5052/0063 63 60 E 5052/0075 75 32 E 5052/0090 90 30 H 5052/0110 110 12 E 7072/0125 125 12 H 7072/0140 140 6 H 7072/0160 160 5 H 7072/0200 200 2 H 7072/0225 225 1 H 7072/0250 250 1 7072/0280 280 1 7072/0315 315 1 -

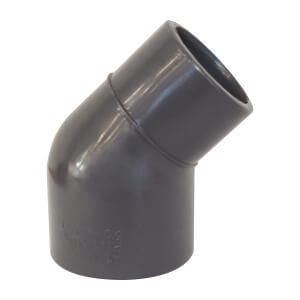

Yapıştırma Redüksiyon Dirsek 45°
7076
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
7076/5040 50 x 40 x 50 60 A Connection : Pipe – Pipe – Fitting
-

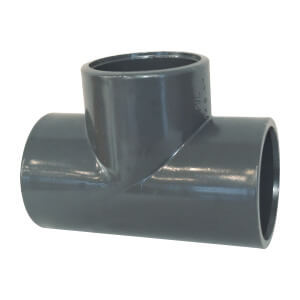

Yapıştırma ''TE'' 90º
5061-7061
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
5061/0020 20 420 E 5061/0025 25 300 E 5061/0032 32 140 A 5061/0040 40 80 A 5061/0050 50 67 E 5061/0063 63 33 E 5061/0075 75 24 E 5061/0090 90 15 E 5061/0110 110 11 H 5061/0125 125 8 H 5061/0140 140 5 H 5061/0160 160 2 E 7061/0200 200 1 H 7061/0225 225 1 H 7061/0250 250 1 7061/0280 280 1 7061/0315 315 1 -

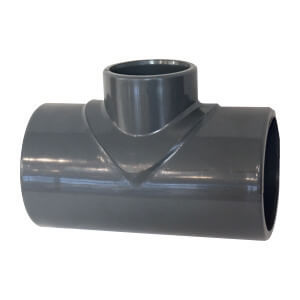

Yapıştırma İnegal ''TE'' 90°
5062-7062
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
7062/2520 25 x 20 x 25 250 A 7062/4020 40 x 20 x 40 70 A 7062/4025 40 x 25 x 40 70 A 7062/4032 40 x 32 x 40 70 A 7062/5025 50 x 25 x 50 90 H 7062/5032 50 x 32 x 50 90 H 5062/6332 63 x 32 x 63 33 E 7062/6340 63 x 40 x 63 50 H 5062/6350 63 x 50 x 63 33 E 5062/7563 75 x 63 x 75 24 E 7062/9050 90 x 50 x 90 20 H 5062/9063 90 x 63 x 90 15 E 5062/9075 90 x 75 x 90 15 E 5062/1163 110 x 63 x 110 11 H 5062/1175 110 x 75 x 110 11 H 5062/1190 110 x 90 x 110 11 H 7062/1275 125 x 75 x 125 8 H 7062/1290 125 x 90 x 125 8 H 5062/1211 125 x 110 x 125 8 H 7062/1611 160 x 110 x 160 4 H 7062/1612 160 x 125 x 160 4 H 7062/1614 160 x 140 x 160 4 H -

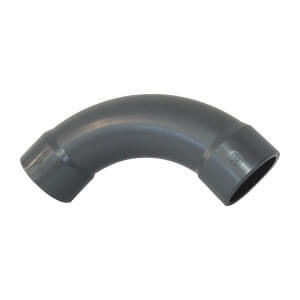

Yapıştırma Deve Boynu 90°
7077
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
7077/0050 50 50 H 7077/0063 63 25 H 7077/0075 75 15 H 7077/0090 90 10 H 7077/0110 110 5 H -
Yapıştırma Körtapa
5091-7091
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
7091/0201 20 x 16 3500 A 5091/2520 25 x 20 2100 E 5091/3220 32 x 20 1200 E 5091/3225 32 x 25 1200 E 5091/4032 40 x 32 700 Α 5091/5025 50 x 25 400 A 5091/5032 50 x 32 400 A 5091/5040 50 x 40 400 A 5091/6332 63 x 32 200 A 5091/6340 63 x 40 200 A 5091/6350 63 x 50 200 A 5091/7550 75 x 50 100 Α 5091/7563 75 x 63 120 A 5091/9050 90 x 50 60 A 5091/9063 90 x 63 72 A 5091/9075 90 x 75 72 A 5091/1107 110 x 75 55 E 5091/1109 110 x 90 55 E 5091/1259 125 x 90 40 E 5091/1211 125 x 110 40 E 5091/1411 140 x 110 36 H 5091/1412 140 x 125 36 H 5091/1611 160 x 110 15 E 5091/1612 160 x 125 15 A 5091/1614 160 x 140 17 E 7091/2016 200 x 160 10 H 7091/2216 225 x 160 7 H 7091/2225 225 x 200 7 H 7091/0516 250 x 160 6 H 7091/0502 250 x 200 6 H 7091/0522 250 x 225 6 H 7091/2822 280 x 225 4 H 7091/2805 280 x 250 4 H 7091/3122 315 x 225 3 H 7091/3105 315 x 250 3 H 7091/3128 315 x 280 3 E -

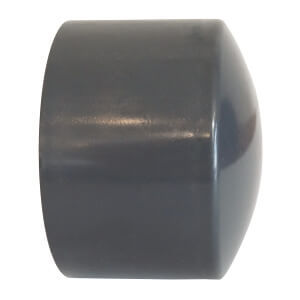

Yapıştırma Dişi Körtapa
5121-7121
Daha FazlaKod Özellikler (mm)
Paketleme ( adet/koli)
5121/0020 20 1800 E 5121/0025 25 900 E 5121/0032 32 600 A 5121/0040 40 350 A 5121/0050 50 200 A 5121/0063 63 100 Α 5121/0075 75 75 E 5121/0090 90 60 H 5121/0110 110 33 E 5121/0125 125 20 E 5121/0140 140 18 E 5121/0160 160 16 H 7121/0200 200 7 H
